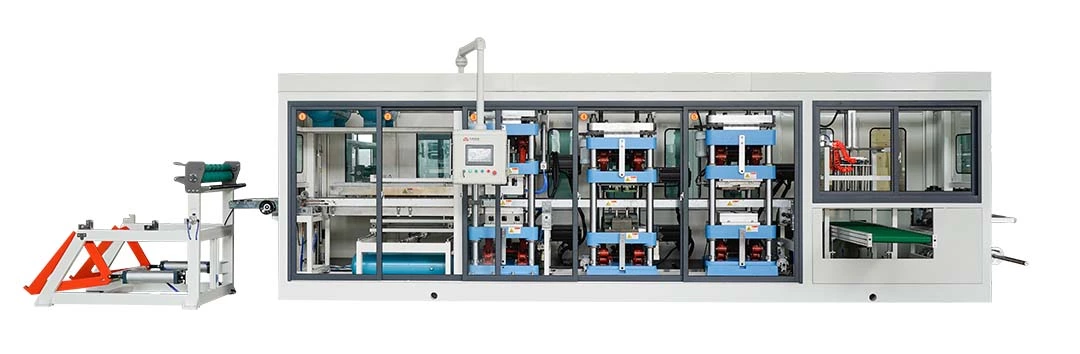

Beverage cup lid thermoforming machine
Product Overview
The beverage cup lid thermoforming machine is a specialized and highly automated equipment suitable for the manufacturing needs of various plastic cup lids. Through thermoforming technology, the equipment can quickly heat and shape plastic sheets to produce cup lids of different shapes and functions, such as cold drink cup lids, hot drink cup lids, straw hole lids, leak-proof lids, etc. It is suitable for food packaging, beverage industry, fast food chains and other scenarios, helping companies achieve efficient and environmentally friendly cup lid production.
Product Features
1. Efficient production performance
High-speed operation: A single production cycle can be completed in just 3-5 seconds, and the multi-cavity design can form 6-12 cup lids at a time (depending on the size of the mold).
High consistency: The use of precision molds and advanced molding control technology ensures that the size and appearance of each cup lid are consistent.
2. Intelligent control system
PLC automatic control: The programmable logic controller (PLC) is used to manage the production process and accurately adjust the temperature, pressure and molding time.
Human-machine interface: Equipped with a multi-language touch screen operation panel, which is simple and intuitive, can quickly adjust parameters and monitor the status of the equipment in real time.
Alarm function: Automatic alarm for abnormal situations, reduce downtime, and ensure production continuity.
3. Environmentally friendly and energy-saving design
Energy-saving heating system: Infrared heating technology heats up quickly while reducing power consumption.
High material utilization: The waste rate is less than 5%, and it supports recycling and reuse of waste materials to reduce production costs.
Support for environmentally friendly materials: The equipment is compatible with environmentally friendly materials such as PLA and degradable plastics to help sustainable development.
4. Diversified adaptability
Mold flexibility: supports quick mold replacement and adapts to different cup lid shapes (round, square, oval, etc.) and sizes (such as 75mm, 90mm, etc.).
Widely applicable materials: compatible with a variety of thermoplastic sheets such as PET, PP, PS, PLA, etc. to meet the needs of different products.
5. Stable and durable
Sturdy body: The whole equipment adopts high-strength alloy steel structure, which has anti-vibration ability to ensure long-term stable operation.
High-quality components: Select electrical components and hydraulic systems from internationally renowned brands, with low failure rate and easy maintenance.
Technical Parameters
| MAIN TECHNICAL PARAMETER | |
| Model | TTF-520AF |
| Forming Area | 520mm x 400 mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-1.6mm |
| Forming Speed (Max.) | 30times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7 m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Used power | 55Kw |
| Rated power | 136Kw |
| Heating power | 75Kw |
| Procedure | Forming-punching-cutting-stacking |
| Dimension | L10800*W4650*H2670mm |
| Weight | About 11.0T |
Applicable fields
Thermoforming machines for beverage cup lids are widely used in the following industries and scenarios:
1. Food and beverage industry: production of coffee cup lids, milk tea cup lids, cold drink straw hole cup lids, etc.
2. Fast food chain companies: beverage cup lids for take-out food packaging.
3. Packaging manufacturing companies: provide customized cup lid solutions for pre-packaged beverages sold in supermarkets.
4. Environmentally friendly packaging companies: produce degradable cup lids to meet green packaging needs.
Core advantages of equipment
1. High cost performance: compared with traditional equipment, it has higher energy efficiency and greater production capacity per unit time.
2. Personalized customization: support customized molds according to customer needs to meet specific brand image or functional requirements.
3. Comprehensive after-sales guarantee: provide 1-year warranty, professional technical team support installation, commissioning and maintenance services to ensure long-term and efficient operation of the equipment.
Production process
1. Material preparation: install thermoplastic plastic sheets to the equipment feed area.
2. Heating and softening: The equipment heats the sheet uniformly to the set temperature to soften it.
3. Forming: Through vacuum adsorption or high-pressure gas technology, the softened material is pressed into the mold cavity to form the cup lid shape.
4. Cooling and demolding: The molded cup lid is quickly cooled and automatically demolded from the mold.
5. Cutting and collecting: The edges are trimmed by the automated trimming device, and the cup lids are collected in categories.
After-sales service
1. Installation and commissioning: Professional technicians will install and debug the equipment on site to ensure rapid production.
2. Operation training: Provide detailed operation, maintenance and maintenance training for the customer team.
3. Spare parts supply: Long-term provision of original accessories and mold replacement services to ensure worry-free production.
4. Technical support: 7×24 hours remote support or on-site service to quickly respond to customer needs.
Summary
The beverage cup lid thermoforming machine is an ideal equipment for modern production. Its high efficiency, intelligence, flexibility and environmental protection characteristics give it significant advantages in the food packaging industry. Choose our equipment to enhance the competitiveness of your company and seize the market opportunities!
