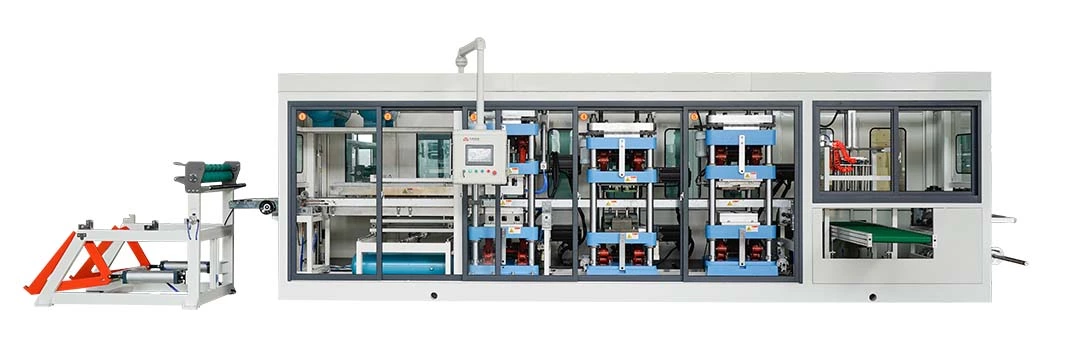

Milk tea cup lid thermoforming machine
The milk tea cup cover thermoforming machine is a highly efficient forming equipment designed for the production of milk tea cup covers. It processes plastic sheets into milk tea cup covers that meet market demand through a thermoforming process. It has the characteristics of high automation, fast forming speed and high precision, and can meet mass production needs. It is widely used in milk tea shops, coffee shops and other beverage industries.
Product features:
1. Efficient production: The use of advanced thermoforming technology, combined with automatic feeding and automatic receiving functions, makes the production process efficient and smooth, with high single-shift output, which can significantly shorten the production cycle.
2. Convenient operation: Equipped with an intelligent control system, it can realize one-button start and stop, and can adjust parameters such as temperature, pressure, and molding time through the touch screen, simplifying the operation process and reducing manual intervention.
3. High molding accuracy: The body and mold are made of high-quality materials and are precisely processed to ensure that the cup lid molding size is stable and the edge is smooth, which is suitable for the production of cup lids of different specifications.
4. Energy saving and environmental protection: The heating system of the machine adopts an energy-saving design to effectively reduce energy consumption; it is equipped with a waste recovery device to reduce material waste and meet environmental protection requirements.
5. Safe and reliable: The equipment is equipped with multiple safety protection measures, such as overheating protection, overload protection and emergency stop button to ensure the safety of operators.
Technical parameters:
| MAIN TECHNICAL PARAMETER | |
| Model | TTF-520AF |
| Forming Area | 520mm x 400 mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-1.6mm |
| Forming Speed (Max.) | 30times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7 m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Used power | 55Kw |
| Rated power | 136Kw |
| Heating power | 75Kw |
| Procedure | Forming-punching-cutting-stacking |
| Dimension | L10800*W4650*H2670mm |
| Weight | About 11.0T |
Scope of application:
This equipment is suitable for the production of various types of milk tea cup lids, beverage cup lids and other disposable plastic packaging products. Suitable for milk tea chain stores, beverage manufacturers and packaging product companies.
Summary:
The milk tea cup lid thermoforming machine is designed with high efficiency, energy saving and safety as the concept. It not only meets the needs of mass production, but also ensures the stability of product quality. It is an indispensable and important equipment in the beverage packaging industry.
