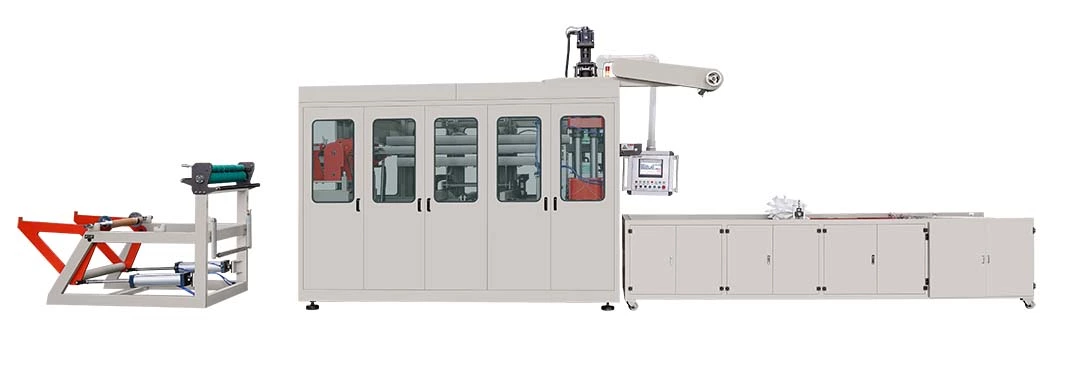

Milk tea cup thermoforming machine
Product Overview
The milk tea cup thermoforming machine is an automated equipment designed specifically for the milk tea industry, which can efficiently produce high-quality milk tea cups, cold drink cups and other plastic containers. The equipment uses advanced thermoforming technology to quickly achieve the conversion from raw materials to finished products by heating plastic sheets and forming them in molds. It is suitable for a variety of plastic materials such as PP, PS, PET, etc.
Product Features
1. Efficient and stable
Equipped with high-performance servo motors and intelligent control systems to ensure rapid molding and shorten production cycles.
The equipment operates stably and is suitable for long-term continuous production.
2. Precise molding
Use high-precision molds to ensure consistent cup size and smooth surface without defects.
Adjustable pressure and temperature control to meet the processing needs of different materials.
3. Easy to operate
Touch screen operation interface, support multi-language display, easy to use.
Automatic feeding, cutting and stacking functions greatly reduce manual intervention.
4. Energy saving and environmental protection
Low energy consumption design reduces power consumption during production.
Waste recovery system reduces material waste and improves production efficiency.
Technical Parameters
| TECHNICAL PARAMETER | |
| Model | TQC-650B |
| Max. Forming Area | 650*300mm |
| Max. Forming Depth | 125-180mm |
| Sheet Thickness | 0.3-1.8mm |
| Sheet Width | 660mm |
| Max. Forming Speed | 30 times/min |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 2.0m³/min |
| Water Consumption | 0.5m³/h |
| Rated Power | 98Kw |
| Used Power | 69Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7000*W2000*H3100mm |
| Weight | About 5T |
Application areas
Thermoforming machines for milk tea cups are widely used in the food packaging industry and are suitable for places that require disposable cups, such as milk tea shops, coffee shops, cold drink shops, etc. At the same time, other catering containers can also be produced, such as yogurt cups, pudding boxes, etc.
After-sales service
We provide a full range of after-sales services, including installation and commissioning, training guidance and regular maintenance. 24-hour customer service responds at any time to ensure your worry-free production operation.
Summary
Thermoforming machines for milk tea cups provide an ideal solution for the packaging needs of the milk tea industry with its high efficiency, precision and environmental protection. Whether it is to improve production efficiency or ensure product quality, this equipment is your best choice.
